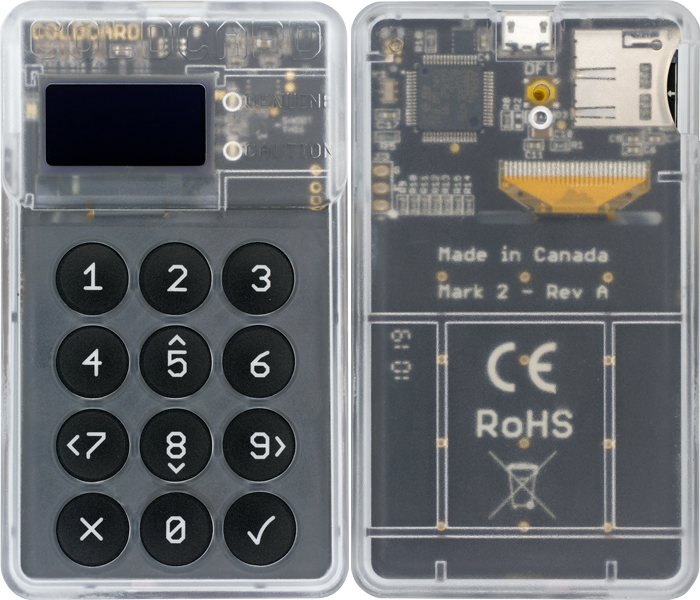

Cold Card Wallet

The ultra secure cold bitcoin wallet Learn More

What is Cold Card Wallet?

It’s a Bitcoin airgapped cold hardware wallet. Used to store securely your values.

?

BIP39 Standard

BIP39 standard means you can backup the secret words onto paper, and have lots of sub-accounts and unlimited independent payment addresses.

?

Professional display

A wide display makes possible to execute all the operations with maximum security, checking all the details of transactions, firmware upgrade, etc.

?

Used offline

The first “Partially Signed Bitcoin Transaction Format” – PSBT (BIP 174) native wallet. You can sign completely offline transactions, using a sd-card to move them.

NEW MK2 Version Advantages

$

Physical Buttons

$

Better power management & ESD protection

$

Tempest anti-monitoring features

$

More physical protection on sensitive trace

$

Hardware mitigation

$

Security improvements

$

Device destruction

$

Activity LED

$

Legacy Software for Mark1

Difference between us and them

  • NO specialized software required. It accepts standard PSBT transaction (BIP 174) stored on an MicroSD card. NO companion ‘app’ on your computer, works with the major wallets already (Electrum, and more to come).
  • It’s cheap! Simple packaging, plain design, no fancy boxes, no redundant cables.
  • It’s ultrasecure! Real crypto security chip. Your private key is stored in a dedicated security chip, not the main micro’s flash.
  • Easy back-up! MicroSD card slot for backup and data storage. This allows truly offline signing, by transferring the unsigned/signed transactions on sneakernet.
  • Open source software design runs Micropython and you can change it.

Other features

  • Full-sized numeric keypad makes entering PIN easy and quick.
  • Larger 128×64 OLED screen.
  • Sign text messages to prove control over private key.
  • It’s an open platform, and we are working on lots of new features, like:
  • Participate in multisig wallets, with other signers.
  • Encrypt/decrypt secret messages (stored on MicroSD or otherwise).
Duress/Secondary Wallet Feature

We provide an optional “secondary PIN code”. If you enter that PIN code, instead of the “real” PIN code, nothing special is shown on the screen and everything operates as normal… However, the bitcoin key generated is not the main key. It is effectively a completely separate wallet!

To take best advantage of this feature, you should put some Bitcoin into the secondary accounts. How much you are willing to lose or what you need to make it plausible, we don’t know.

The “duress” wallet will still be derived from the original BIP39 words, so you don’t need to back it up separately, but there will be no way to get from that wallet back to the original wallet with the real funds in it.

We now support BIP39 passphrases so you can also create an unlimited supply of distraction wallets.

Key Storage

We find it a little scary that existing Bitcoin wallets trust the main microprocessor with their valuable secrets.

The Coinkite Coldcard uses Microchip’s ATECC508A to store the critical master secret (for the root BIP32 HD wallet). This little chip is very powerful: it does SHA-256 hashing and includes an internal true random number generator (TRNG). Combining those features, and with careful protocol design, we can enforce cryptographically, that the attacker must know the PIN to access the secret. An attacker cannot brute-force all 10,000 combinations of a four-digit numeric code: the search space is 2**256 not 10**4. This remains true even if they removed the chip from the board or fully-replaced the firmware in the main microprocessor.

More details are available in this white paper and the complete source code is available as well.

Genuine vs. Caution Lights

To resist Evil Maids, and other sneaky people with physical access to your Coldcard, we will sign our firmware with a factory key. During boot-up, the firmware’s signature will be verified and the appropriate Green/Red light set. Changing that light’s status is actually controlled by dedicated circuitry, so a rogue bit of software cannot override it. The control circuit for this is exposed on the top surface of the product, so any physical tampering by those maids will be visible as well.

Firmware Upgradable and Expandable

This product is firmware upgradable in the field. Updated firmware must be signed by the factory, but we can allow third party software to run as well.

We have so much internal protection for the master secret, that we feel it’s safe to allow potentially hostile firmware onto this platform. If you don’t feel safe doing that, then it’s a choice you can make.

We’re hopeful that altcoin proponents will be able to take our system and extend it to support their specialty crypto coins. It should help that all of the firmware is written in MicroPython.

Debug Mode

Upon entering the unlock code (PIN) and selecting the appropriate menu item, we will even support REPL access over USB. This means you can type python commands directly into the product! You might use this to develop new features, create special transactions, or do special signing requests.

As a developer, you can also download the source and compile it yourself to personalize your Coldcard.

Cold Card Wallet Mk2 Version, directly imported for Switzerland customers
